# Data Science-Ish: The Use of Mixed Effects (or Multi-Level) Models for Analyzing Complex Data Sources
### Joshua Rosenberg
### 2019-06-20 (updated: 2019-06-21)

---

# #whoami

.pull-left[
* Joshua Rosenberg, Ph.D.
* Assistant Professor, STEM Education, University of Tennessee, Knoxville
* Dad (16 month toddler!)
* Primary areas of interest:
  * Data science in education
  * Data science education
]

## Following along with the presentation

- Code: https://github.com/jrosen48/data-science-ish
- Presentation: https://jrosen48.github.io/data-science-ish

---
class: inverse, center, middle
# Background/Motivation
---

# Rationale and Aim

- Mixed effects (or multilevel) models are extensions of linear models (regressions)
- Commonly used in experimental and observational research and policy and evaluation contexts
- Are less widely-used by data scientists
- One piece of evidence: Cross Validated has 1,392 questions tagged #mixed-model that are unanswere (of 3,337 total questions)
- I am trying to introduce mixed effects model as a data science(-*ish*) statistical method that can be useful and is easy to estimate and interpret.

---

# Example: Rail-trails!

## Springfield Greenway

![](img/springfield-greenway.jpg)

*Image from kz440gal on TraiLink.com*

---

# The Rails-to-Trails Conservancy

- Rail trails are railroad tracks that have been converted into pathways/greenways
- The [Rails-to-Trails Conservancy](https://www.railstotrails.org/) is an organization "dedicated to creating a nationwide network of trails from former rail lines and connecting corridors to build healthier places for healthier people"
- [TrailLink](https://www.traillink.com/) is their website that lists most of the rail-trails in the United States (~4,000 total)
- Let's take a look at their website
---
# TrailLink.com

- Which rail-trail is best?
- In one state
- Across the nation
- This can be a (surprisingly) difficult question to answer
- View trails in TN here: https://www.traillink.com/trailsearch/?mmloc=tn

**<center>What do you think? Which is (or, which are) the best?</center>**

<center>Discuss your answer with an elbow partner!</center>

---
class: inverse, center, middle
# Building up to Mixed Effects Models
---

# One data-based solution

## A regression model!

`$$\text{y} = \alpha + \beta_{1}(\text{var1}) + \beta_{2}(\text{var2}) + \epsilon$$`

---

# Accessing rail-trails data

- Use the `railtrails` R package
- Install via `install.packages('railtrails')`)

```r
library(railtrails)

railtrails
```

```
## # A tibble: 3,846 x 11
##    state name  distance surface category mean_review description n_reviews
##    <chr> <chr>    <dbl> <chr>   <chr>          <int> <chr>           <int>
##  1 AK    Chas…     14   Dirt, … Rail-Tr…           4 "Though cl…         1
##  2 AK    Tony…     11   Asphalt Rail-Tr…           5 "The Tony …         5
##  3 AK    Bird…     13   Asphalt Rail-Tr…           5 "The Bird …         3
##  4 AK    Camp…      7.5 Asphal… Greenwa…           5 "The Campb…         3
##  5 AK    Goos…      1.5 Asphal… Greenwa…           0 "The sceni…         0
##  6 AK    Home…      4   Asphalt Greenwa…           5 "On the so…         1
##  7 AK    Lani…      3.9 Asphal… Greenwa…           3 "The Lanie…         1
##  8 AK    Palm…      6.1 Gravel  Rail-Tr…           0 "As its na…         0
##  9 AK    Ship…      2.6 Asphalt Rail-Tr…           4 "Ship Cree…         1
## 10 AL    Chie…     33   Asphalt Rail-Tr…           5 "In northe…        77
## # … with 3,836 more rows, and 3 more variables: raw_reviews <list>,
## #   lat <dbl>, lng <dbl>
```

---

# Let's focus in on Tennessee

```r
library(dplyr)

d <- railtrails %>%
  filter(state == "TN")

d
```

```
## # A tibble: 55 x 11
##    state name  distance surface category mean_review description n_reviews
##    <chr> <chr>    <dbl> <chr>   <chr>          <int> <chr>           <int>
##  1 TN    Tenn…     4.73 Asphal… Rail-Tr…           5 "The Tenne…         9
##  2 TN    Bets…     2    Asphalt Rail-Tr…           0 "The Betsy…         0
##  3 TN    Alta…     0.7  Asphal… Greenwa…           0 "Alta Lake…         0
##  4 TN    Bear…     2.7  Asphalt Greenwa…           0 "From Thir…         0
##  5 TN    Big …     1    Concre… Rail-Tr…           5 "Big River…         2
##  6 TN    Bria…     1.1  Asphalt Rail-Tr…           0 "The Brian…         0
##  7 TN    Broo…     0.4  Asphalt Greenwa…           3 "Brookmead…         5
##  8 TN    Cave…     0.95 Asphalt Greenwa…           0 "Cavet Sta…         0
##  9 TN    Chat…    13.1  Concre… Greenwa…           5 "The Chatt…        17
## 10 TN    Clar…     4.6  Asphalt Rail-Tr…           5 "The 4.6-m…        21
## # … with 45 more rows, and 3 more variables: raw_reviews <list>,
## #   lat <dbl>, lng <dbl>
```

---

# Let's fit a linear model

## Unnesting the reviews

```r
d <- d %>%
  unnest(raw_reviews) %>%
  rename(raw_review = raw_reviews)
```

- `lm()` will automatically recognize that `name` is a categorical variable

```r
m1 <- lm(raw_review ~ -1 + name, data = d)
```

- The output is difficult to read (because of the number of trails/`name`s)!

---

# Plotting the results

```r
library(ggplot2)
library(broom)
tidy(m1) %>%
  ggplot(aes(x = reorder(term, estimate), y = estimate)) +
  geom_point(color = "red") +
  coord_flip()
```

---

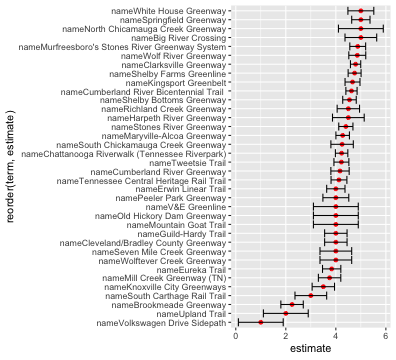

# Plotting the results with SEs

```r
tidy(m1) %>%
  ggplot(aes(x = reorder(term, estimate), y = estimate)) +
  geom_point(color = "red") +
  geom_errorbar(aes(ymin = estimate - std.error,
                    ymax = estimate + std.error)) +
  coord_flip()
```

.pull-left[
![](data-science-ish-presentation_files/figure-html/unnamed-chunk-10-1.png)
]

.pull-right[
**Which trail is best?**
- White House Greenway?
- Springfield Greenway?
- North Chicamauga Creek Greenway?
]

---

# Interpreting the output

- Gelman and Hill (2007) consider this model to be the model with *no pooling*:
- The estimates for the trail means are not changed based on 'pooling' together the estimates (or in any other way)
- The problem is that if we only consider the mean, then we may be ignoring how uncertain the estimates are
- Ignoring this uncertainity may mean that the estimates are not good: they may be biased

$$
`\begin{aligned}
\text{raw_review} &= \beta_{0}(\text{name}_{\text{Big River Crossing}})\ + \\
&\quad \beta_{1}(\text{name}_{\text{Brookmeade Greenway}})\ + \\
&\quad \beta_{2}(\text{name}_{\text{Chattanooga Riverwalk (Tennessee Riverpark)}})\ + \\
&\quad \beta_{3}(\text{name}_{\text{Clarksville Greenway}})\ + \\
...
&\quad \beta_{35}(\text{name}_{\text{Wolftever Creek Greenway}})\ + \\
&\quad \epsilon
\end{aligned}`
$$

---

# Other approaches

## What if we ignored the trail completely?

```r
m2 <- lm(raw_review ~ 1, data = d)

m2
```

```
##
## Call:
## lm(formula = raw_review ~ 1, data = d)
##
## Coefficients:
## (Intercept)
##       4.343
```

Which trail is best?

¯\_(ツ)_/¯

---

# Interpreting the output

- This can be considered a model with *complete pooling*
- The estimates are affected by pooling them together

The model is pretty simple: Not sure we need to plot this...

.pull-left[

```r
tidy(m2) %>%
  ggplot(aes(x = term, y = estimate)) +
  geom_errorbar(aes(ymin = estimate - std.error,
                    ymax = estimate + std.error)) +
  geom_point() +
  coord_flip()
```

<img src="data-science-ish-presentation_files/figure-html/unnamed-chunk-13-1.png" style="display: block; margin: auto;" />
]

.pull-right[

```r
extract_eq(m2, use_coef = TRUE)
```

$$
\text{raw_review} = 4.34 + \epsilon
$$
]

---

# The mixed effects model approach

- Models the reviews as if they are 'grouped' within trails
- The trail (name) is considered to be a 'grouping factor'
- (also known as a 'random effect')

```r
library(lme4) # the most common R package for mixed effects models; see also nlme

m3 <- lmer(raw_review ~ 1 +
             (1|name),
           data = d)
```

This model can be written as an extension of a linear model, where *j* indexes the different trails.:

$$
{y}=\alpha _{ j }+\epsilon +\\
\alpha _{ j }=\alpha _{ 00 }+\sigma_j
$$

---

# Checking out the output

```r
m3
```

```
## Linear mixed model fit by REML ['lmerMod']
## Formula: raw_review ~ 1 + (1 | name)
##    Data: d
## REML criterion at convergence: 579.7115
## Random effects:
##  Groups   Name        Std.Dev.
##  name     (Intercept) 0.4236
##  Residual             0.9184
## Number of obs: 207, groups:  name, 36
## Fixed Effects:
## (Intercept)
##       4.234
```

---

# Let's create a plot of the output

```r
m3_intercept <- tidy(m3) %>% filter(term == "(Intercept)")

m3_ranef <- ranef(m3) %>% as_tibble()

p3 <- m3_ranef %>%
  ggplot(aes(x = grp, y = condval + m3_intercept$estimate)) +
  geom_errorbar(aes(ymin = (condval + m3_intercept$estimate) - condsd,
                    ymax = (condval + m3_intercept$estimate) + condsd)) +
  geom_point(color = "green") +
  coord_flip()
```

---

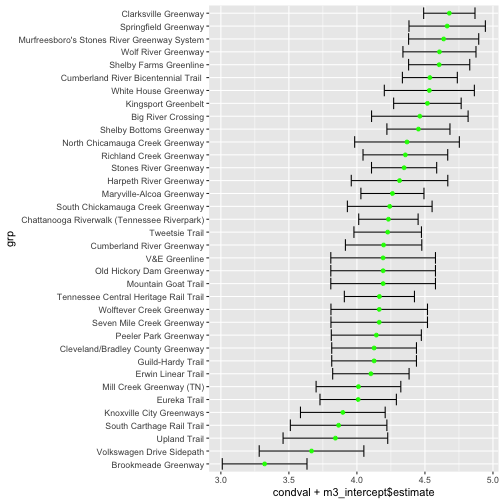

# Looking at the plot

```r
p3
```

![](data-science-ish-presentation_files/figure-html/unnamed-chunk-18-1.png)

---

# Interpreting the output

## Which trail is best?

- Clarksville Greenway?
- Springfield Greenway?
- Murfeesboro's Stones River Greenway System?

## What is the model 'like'?

- This model represents the *partial pooling*
- Grouping factors/random effects:
- A *variable* with coefficient estimates that differ by group and are modeled with a probability distribution
- The estimate for the coefficient depends on *how different* the observations associated with the group are and *how systematic* the differences are (relative to all of the observations)
  - The largest coefficient estimates will be associated with groups that are systematically different
  - The smallest coefficient estimates will be associated with groups that are either not very different or are not systematically so
---

# Let's create a graph to compare

```r
dt <- tidy(m1) %>% mutate(term = str_replace(term, "name", ""))

pc <- m3_ranef %>%
  ggplot(aes(x = grp, y = condval + m3_intercept$estimate)) +
  geom_point(color = "darkgreen") +
  geom_errorbar(aes(ymin = (condval + m3_intercept$estimate) - condsd,
                    ymax = (condval + m3_intercept$estimate) + condsd),
                color = 'green') +
  geom_point(data = dt, aes(x = reorder(term, estimate), y = estimate), color = "red", inherit.aes = FALSE) +
  geom_errorbar(data = dt, aes(x = reorder(term, estimate),
                               ymin = estimate - std.error,
                               ymax = estimate + std.error), color = 'tomato', inherit.aes = FALSE) +
  coord_flip() +
  labs(subtitle = "Red = regression estimates; Green = mixed effects model estimates")
```

---

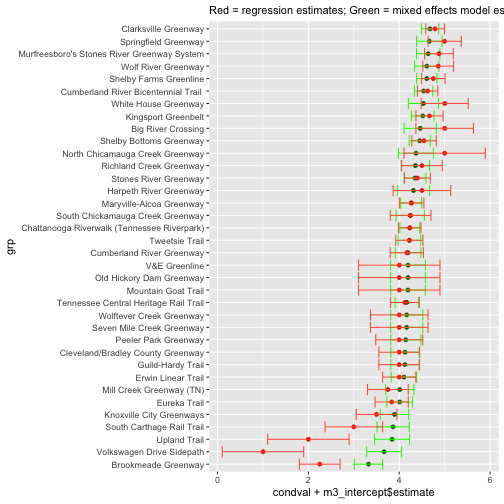

# Let's plot the comparisons

```r
pc
```

![](data-science-ish-presentation_files/figure-html/unnamed-chunk-20-1.png)
---
# Comparing models with no pooling est.

```r
pc + geom_hline(yintercept = tidy(m2) %>% pull(estimate), color = "darkgray")
```

![](data-science-ish-presentation_files/figure-html/unnamed-chunk-21-1.png)
---

# So, which trail is best?

.pull-left[
## Candidate trails from the regression
- White House Greenway
- Springfield Greenway
- North Chicamauga Creek Greenway
]

.pull-right[
## Candidate trails from the mixed effects model
- Clarksville Greenway
- Springfield Greenway
- Murfeesboro's Stones River Greenway System
]

- The estimates for the groups from the regression tend to me more confident
  - They exhibit *no pooling*
- The estimates for the groups from the mixed effects model are nearer to the mean
  - They exhibit *partial pooling*
  - Especially for trails with few observations (i.e., North Chicamauga Creek and White House)
- What about the *complete pooling* estimates?
  - Not relevant but is often (implicitly) used: Other estimates can be biased

---
class: inverse, center, middle
# Extending the mixed effects model
---

# Adding another grouping factor

- We used a 'varying intercepts' model
- We can add more grouping factors/random effects

```r
railtrails <- railtrails %>%
  unnest(raw_reviews) %>%
  rename(raw_review = raw_reviews)

m4 <- lmer(raw_review ~ 1 +
             (1|name) +
             (1|state),
           data = railtrails)
```
---
# Inspecting the results

```r
m4
```

```
## Linear mixed model fit by REML ['lmerMod']
## Formula: raw_review ~ 1 + (1 | name) + (1 | state)
##    Data: railtrails
## REML criterion at convergence: 44701.29
## Random effects:
##  Groups   Name        Std.Dev.
##  name     (Intercept) 0.5529
##  state    (Intercept) 0.0873
##  Residual             0.9454
## Number of obs: 15562, groups:  name, 2539; state, 51
## Fixed Effects:
## (Intercept)
##       4.017
```
---
# Examining the ICC

Is there systematic variation at the state level?

The Intra-class Correlation (ICC) is an estimate for the relationship between higher or lower grouping factor/random effect estimates and the outcome (*y*-variable).

```r
library(performance)
icc(m4)
```

```
## # Intraclass Correlation Coefficient
##
##      Adjusted ICC: 0.260
##   Conditional ICC: 0.260
```

---

# Adding a predictor variable - distance

```r
m5 <- lmer(raw_review ~ 1 +
             scale(distance) +
             (1|name) +
             (1|state),
           data = railtrails)

m5
```

```
## Linear mixed model fit by REML ['lmerMod']
## Formula: raw_review ~ 1 + scale(distance) + (1 | name) + (1 | state)
##    Data: railtrails
## REML criterion at convergence: 44696.01
## Random effects:
##  Groups   Name        Std.Dev.
##  name     (Intercept) 0.55044
##  state    (Intercept) 0.08726
##  Residual             0.94551
## Number of obs: 15562, groups:  name, 2539; state, 51
## Fixed Effects:
##     (Intercept)  scale(distance)
##         4.04056          0.08019
```

---

# Preparing other variables - surface

```r
library(forcats)
library(stringr)

railtrails <- mutate(railtrails,
                     surface_rc = case_when(
                       surface == "Asphalt" ~ "Paved",
                       surface == "Asphalt, Concrete" ~ "Paved",
                       surface == "Concrete" ~ "Paved",
                       surface == "Asphalt, Boardwalk" ~ "Paved",
                       str_detect(surface, "Stone") ~ "Crushed Stone",
                       str_detect(surface, "Ballast") ~ "Crushed Stone",
                       str_detect(surface, "Gravel") ~ "Crushed Stone",
                       TRUE ~ "Other"
                     )
)
```

---

# Adding a predictor variable - surface

```r
m6 <- lmer(raw_review ~ 1 +
             scale(distance) +
             surface_rc +
             (1|name) +
             (1|state),
           data = railtrails)

m6
```

```
## Linear mixed model fit by REML ['lmerMod']
## Formula: raw_review ~ 1 + scale(distance) + surface_rc + (1 | name) +
##     (1 | state)
##    Data: railtrails
## REML criterion at convergence: 44671.95
## Random effects:
##  Groups   Name        Std.Dev.
##  name     (Intercept) 0.54193
##  state    (Intercept) 0.08014
##  Residual             0.94593
## Number of obs: 15562, groups:  name, 2539; state, 51
## Fixed Effects:
##     (Intercept)  scale(distance)  surface_rcOther  surface_rcPaved
##         3.93331          0.11029          0.03028          0.19065
```

---
class: inverse, center, middle
# Connection to Bayesian Methods
---

# (A very tiny introduction to) Bayesian methods

- Bayesian methods can be distinguished from frequentist methods in two key ways:
  1. Describing estimates with *probability* statements/distributions
  1. Using *prior* information in the estimation process

- How is this different from the models we estimated?
  1. We focused on point estimates (and their standard errors/deviations)
  1. Partial pooling can be considered an instance of using prior information for the grouping factor/random effects estimates

- Also, the estimation process is *usually* different, but this is not a distinguishing feature

---

# Estimating a model with brms

```r
library(brms)
m7 <- brm(raw_review ~ 1 +
            scale(distance) +
            surface_rc +
            (1|name) +
            (1|state),
          iter = 1000, chains = 3, cores = 3,
          data = railtrails)
```

```
## Warning: Rows containing NAs were excluded from the model.
```

---

# Taking a peak at the model output

```r
m7
```

```
##  Family: gaussian
##   Links: mu = identity; sigma = identity
## Formula: raw_review ~ 1 + scale(distance) + surface_rc + (1 | name) + (1 | state)
##    Data: railtrails (Number of observations: 15562)
## Samples: 3 chains, each with iter = 1000; warmup = 500; thin = 1;
##          total post-warmup samples = 1500
##
## Group-Level Effects:
## ~name (Number of levels: 2539)
##               Estimate Est.Error l-95% CI u-95% CI Eff.Sample Rhat
## sd(Intercept)     0.54      0.02     0.51     0.57        494 1.00
##
## ~state (Number of levels: 51)
##               Estimate Est.Error l-95% CI u-95% CI Eff.Sample Rhat
## sd(Intercept)     0.08      0.03     0.01     0.13        129 1.03
##
## Population-Level Effects:
##                 Estimate Est.Error l-95% CI u-95% CI Eff.Sample Rhat
## Intercept           3.93      0.03     3.88     3.99        592 1.00
## scaledistance       0.11      0.02     0.06     0.16        392 1.00
## surface_rcOther     0.03      0.07    -0.11     0.16        804 1.00
## surface_rcPaved     0.19      0.03     0.12     0.26        530 1.01
##
## Family Specific Parameters:
##       Estimate Est.Error l-95% CI u-95% CI Eff.Sample Rhat
## sigma     0.95      0.01     0.93     0.96       1756 1.00
##
## Samples were drawn using sampling(NUTS). For each parameter, Eff.Sample
## is a crude measure of effective sample size, and Rhat is the potential
## scale reduction factor on split chains (at convergence, Rhat = 1).
```

Results [should be very similar to those for `m6`](https://joshuamrosenberg.com/blog/explorations-in-markov-chain-monte-carlo-mcmc/).

---
class: inverse, center, middle
# Other Extensions
---

# Modeling complex data structures

- Additional grouping factors/random effects can easily be added
- Cross-classified grouping factors/random effects can be useful (e.g., when you have time-dependent and location-specific data)
- Can add an arbitrary number of grouping factors
- Random slopes allow for predictor variables to be modeled with slopes that differ based on the group (e.g., if there were a variable for "the weather on the day the trail was reviewed" that could have a different effect depending on the trail)
- Can easily be used to estimate non-linear models (i.e., models with dichotomous or count outcomes)
- Can estimate multivariate models (with brms)

---
class: inverse, center, middle
# Wrapping up
---

# Summary and Resources

- Mixed effects models are extensions of linear models that allow for complex data
- They are easy to estimate and to interpret (and to compare to simpler models)
- Their extensions make them useful for a range of problems
- They are actively being developed and there is an active community of users to provide support
- Resources:
  - [Gelman and Hill (2006)](https://www.amazon.com/Analysis-Regression-Multilevel-Hierarchical-Models/dp/052168689X)
  - [West, Welch, and Galecki (2014)](https://www.amazon.com/Linear-Mixed-Models-Practical-Statistical/dp/1584884800)
  - [Kruschke (2014)](https://www.amazon.com/Doing-Bayesian-Data-Analysis-Tutorial/dp/0123814855)

---

# Get in touch!

- [Joshua Rosenberg](mailto:jmrosenberg@utk.edu)
- GitHub: https://github.com/jrosen48
- Twitter: [@jrosenberg6432](https://twitter.com/jrosenberg6432)
- Code: https://github.com/jrosen48/data-science-ish
- Presentation: https://jrosen48.github.io/data-science-ish

Thank you
